Why Do Industrial Systems Use 3 Phase Isolation Transformers?

In industrial and commercial power systems the supply network and the equipment it feeds share a common electrical reference. The earth. Under conditions that connection is harmless.. Under fault conditions or in environments where precision matters that shared reference becomes a source of problems that range from measurement errors and interference to genuine safety hazards.

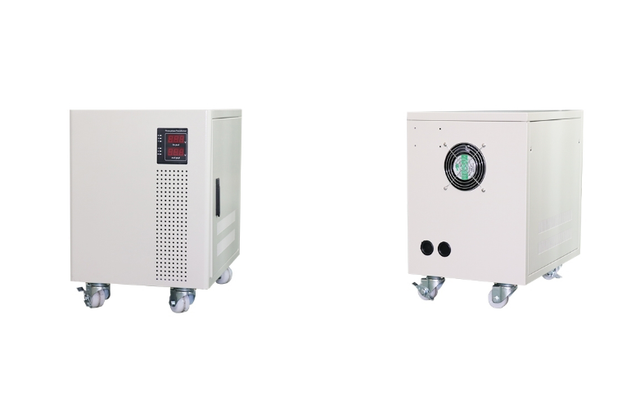

A Three Phase Isolation Transformer breaks that connection. It transfers power from the supply network to the load through coupling alone with no direct electrical path between the two sides. The result is a circuit that floats relative to earth which changes the fault behaviour of the system, removes common-mode noise paths and eliminates the ground loops that degrade performance in sensitive equipment.

Understanding what isolation actually does. And what it does not do. Is essential for anyone specifying, installing or working with Three Phase power systems in industrial, medical, marine or precision measurement environments. This article covers the operating principle, the significance of winding configurations, the practical benefits isolation provides and what to look for when selecting a transformer for an application.

How a Three Phase Isolation Transformer Is Constructed

A Three Phase Isolation Transformer transfers power across all Three Phases of an AC supply simultaneously. It can be built as Three single-phase transformers connected together. A bank arrangement. Or as a single Three Phase unit with all Three sets of windings sharing a common Three-limb or Five-limb core. The single Three Phase unit is compact, more efficient and less expensive for a given power rating, which is why it is the standard choice for most industrial applications.

Each limb of the core carries the secondary windings for one phase. The windings for all Three Phases are magnetically coupled through the shared core, which means the flux from each phase interacts with the others in ways that affect the transformers response to loads and harmonic currents. The core geometry. Three-limb versus Five-limb. Determines how well the transformer handles zero-sequence flux, which becomes important when the secondary supplies loads that generate harmonic currents or when the load balance between phases is poor.

The insulation system between secondary windings is where the isolation property is created and maintained. In a distribution transformer the insulation is sufficient to withstand normal operating voltages plus a test margin. In a reinforced isolation transformer designed for safety applications the insulation system is substantially more robust. With greater creepage and clearance distances additional insulating layers and a dielectric withstand voltage that reflects the heightened requirements of the application standard.

Winding Configurations: Delta and Wye and What Each Does

3 Three Phase Isolation Transformer can be wound in primary and secondary combinations. Each configuration has properties in terms of voltage transformation ratio, neutral availability, harmonic behaviour and fault current characteristics. The Four main configurations are Delta-Delta, Delta-Wye, Wye-Delta and Wye-Wye.

Delta Primary Winding

A delta-connected primary winding forms a loop between the Three Phases with no neutral connection. This arrangement handles voltage unbalance well. Allows third-harmonic flux to circulate within the delta loop rather than appearing as a voltage distortion on the supply side. Delta primaries are common in applications where the supply is Three-wire without a neutral and where robustness under unbalanced loading is a priority.

Wye Primary Winding

A wye-connected primary has a neutral point that can be connected to earth. This provides a reference on the primary side and supports Four-wire supply connections. Wye primaries are common in utility distribution systems. In applications where the primary supply is a Four-wire earthed system. The neutral point allows line-to-neutral voltages to be used where needed without transformers.

Delta Secondary Winding

A delta secondary provides Three-phase output without a neutral. It handles loads well and circulates third-harmonic currents internally rather than allowing them to appear in the line currents. Delta secondaries are typically used for motor loads and other balanced Three-phase loads that do not require a conductor.

Wye Secondary Winding

A wye secondary provides both line-to-line and line-to-neutral voltages making it suitable for loads that include single-phase equipment. The neutral can be earthed at the secondary to create a TN or TT system on the side or left floating to maintain a fully isolated IT system. Most applications that include both Three-phase motor loads and single-phase equipment use a wye secondary for this flexibility.

The Delta-Wye Combination

The delta-wye (Dy) configuration is widely used in industrial isolation transformers. The delta primary eliminates harmonic distortion from appearing on the supply side and the wye secondary provides a neutral for single-phase loads while allowing the neutral to be earthed or floated independently of the supply network. It also produces a 30-degree phase shift between secondary voltages, which is used deliberately in some drive systems to cancel specific harmonic orders when multiple transformers are used in parallel.

The Practical Benefits of Three-Phase Isolation

Personnel Safety in Fault Conditions

In a -isolated earthed system a person who simultaneously contacts a live conductor and any earthed surface. A machine frame, a water pipe, the floor. Completes a circuit and receives an electric shock. The current path exists because the live conductor is referenced to earth through the supply neutral. In a secondary system neither output conductor is referenced to earth. A person contacting a live conductor while standing on an earthed surface does not complete a circuit because the return path through earth does not exist. This is why isolated power systems are mandatory in operating theatres, locations in medical facilities and certain marine environments where shock risk is elevated.

Ground Loop Elimination

When multiple pieces of equipment are connected to the same earth at different physical locations small differences in earth potential between those points drive circulating currents through the equipment chassis, signal cables and screen conductors. In systems this appears as hum. In measurement systems it appears as offset errors and noise. In data communications it can cause transmission errors and equipment damage. A Three Phase Isolation Transformer at the supply point breaks the path that allows these currents to flow, eliminating the problem at its source rather than requiring individual cable screening and ground lift strategies at each affected piece of equipment.

Common-Mode Noise Rejection

Electrical noise that appears equally on all conductors to earth. Called common-mode noise. Is a major interference source in industrial environments with variable frequency drives switching power supplies and large motor loads. Common-mode noise couples onto supply lines. Propagates to sensitive equipment through the shared earth connection. A Three Phase Isolation Transformer with a screen between primary and secondary windings suppresses common-mode noise transfer significantly. The screen intercepts capacitively coupled noise. Diverts it to earth before it reaches the secondary winding providing a clean supply to noise-sensitive loads even in electrically harsh environments.

Voltage Conversion and Adaptation

A Three Phase Isolation Transformer frequently performs voltage conversion at the time as providing isolation. Industrial equipment imported from a region with a supply standard. 480 V in North America versus 400 V in Europe for example. Can be adapted to the local supply voltage through a step-up or step-down isolation transformer without requiring any modification to the equipment itself. The transformer handles the voltage adaptation while simultaneously providing the isolation and neutral arrangement that the equipment or installation standard requires.

Harmonic Current Management

Three Phase Isolation Transformers can also help manage currents in industrial power systems. By providing an impedance path to harmonic currents the transformer can reduce the flow of harmonic currents and minimize the risk of overheating, vibration and other problems associated with harmonic distortion. This is particularly important in applications where non-linear loads such as frequency drives, rectifiers and switched-mode power supplies are used.

Variable frequency drives, rectifiers and other non-linear loads draw more current in pulses than in a smooth flow. This creates currents that go back into the supply network. These harmonic currents cause a lot of problems. They make the voltage get distorted. They also make the supply cables and other transformers get too hot.. They interfere with other equipment that is using the same supply.

The delta-wye isolation transformer is really good at stopping some of these problems. It traps the harmonics and their multiples. It keeps them from going to the supply side. For facilities that have a lot of frequency drives this is a really big deal. The harmonic trapping effect is a benefit of using isolation transformers where the drives get their power. Variable frequency drives and isolation transformers are important to consider.

Applications Where Three-Phase Isolation Is Required or Strongly Recommended

Medical Facilities

Medical electrical installations in areas used for life-critical procedures need to use special power systems. These systems are called IT power systems. They have to be monitored all the time by a device that checks the insulation. The isolation transformer is the part that makes this system work. It has to meet strict requirements. These requirements are set by standards like IEC 60364-7-710. The transformer has to be able to handle voltages and currents. It also has to be very safe.

Marine and Offshore

When a ship is connected to the power on the shore it can cause problems. The metal parts of the ship can corrode. This is because of the electricity flowing between the ship and the shore. A special transformer can help with this problem. It is called a galvanic isolation transformer. It stops the electricity from flowing between the ship and the shore. This helps to prevent corrosion.

Data Centres

Data centres have a lot of equipment that uses power. This equipment can make a lot of noise. Use power in a way that is not smooth. The power has to be very reliable. If the power stops it can cause a lot of problems. Isolation transformers can help with this. They can make the power cleaner and more reliable. They can also help to protect the equipment.

What to Check When Selecting a 3 Phase Isolation Transformer

First you need to check the power rating. This is the amount of power that the transformer can handle. You need to add an extra to be safe. Then you need to check the voltage. The voltage of the transformer has to match the voltage of the power source and the equipment.You also need to consider how to choose a step-up & step-down transformer.

You also need to check the winding configuration. This is the way that the transformer is connected. It has to match the power source and the equipment. Some equipment needs a connection to work properly.

The insulation class is also important. This is the level of protection that the transformer has. It has to match the standards of the equipment and the power source.

The enclosure type and cooling method are also important. They have to match the environment where the transformer will be used. Some transformers are designed for use and some are designed for outdoor use.

A 3 phase isolation transformer is an important part of a power system. It helps to protect the equipment and the people using it. It can also help to prevent problems with the power. You need to choose the transformer for your needs. If you choose one it can cause a lot of problems.

You should not just choose a transformer based on the price. You need to consider all the factors. The transformer has to be able to handle the power and the voltage. It has to be safe and reliable. If you choose the transformer it will work well for a long time.

Conclusion

A 3 phase isolation transformer does a lot more than just move power from one circuit to another circuit. It changes the way the secondary system behaves when something goes wrong gets rid of ground loops and common-mode noise paths that can hurt signal integrity and equipment performance and in safety-critical applications it provides the base of a power system that is designed to keep working even if one thing goes wrong so it does not stop working right away or cause a shock.

The way the transformer is wound. Either delta or wye on each side. Decides how it handles changing voltage providing a point handling harmonic currents and behaving when something goes wrong. Getting this configuration right for the power supply and load conditions is just as important as getting the power rating right for the 3 phase isolation transformer. The insulation has to be good enough for what the 3 phase isolation transformers being used for: industrial, medical and marine installations all have their own rules that a regular transformer might not be able to meet.

You should think of the 3 phase isolation transformer as an important part that decides the electrical boundary between the power supply and the equipment it is protecting, not just something you buy because it is cheap. If you choose the 3 phase isolation transformer it will work well for a very long time.. If you choose the wrong 3 phase isolation transformer it will cause problems that are hard to figure out where they are coming from.
